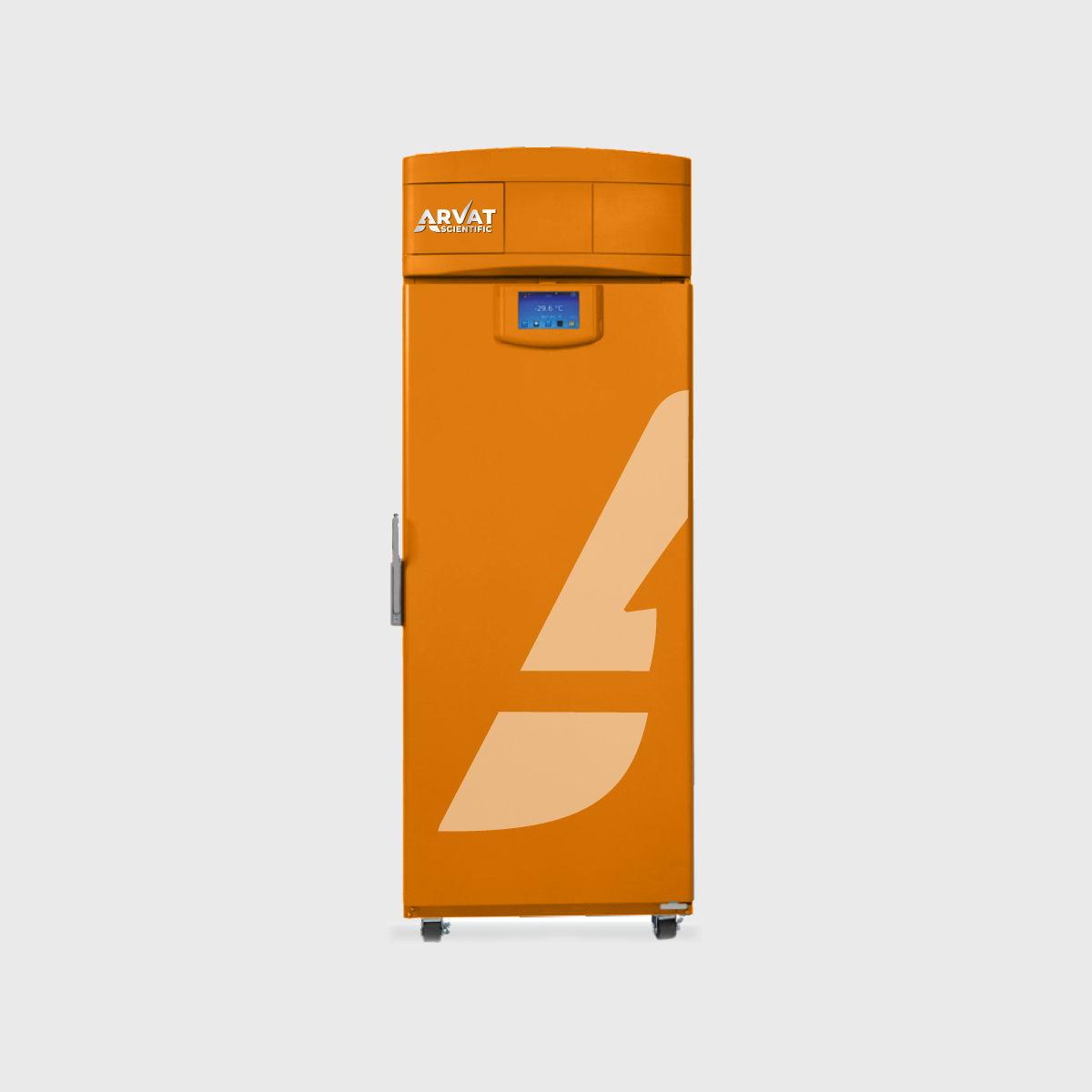

Plasma Freezer
Plasma Freezer is specifically designed for its usage includes preservation of plasma and blood components at desired low temperature. The system includes micro controller based graphic display which ensures crystal clear accurate temperature value from long distance Operation is made simple with the help of soft button. Door locking system also provided for better security. Freezer Consists High-Tech rapid cooling System provides* quick pull of temperature upto -40°C.
SALIENT FEATURES:
▸ CFC free gas and high density PUF Insulation
▸ Password protected control board.
▸ LCD based Graphic display
▸ Eco-Friendly refrigerator system with time delay.
▸ Audio-Visual alarm if the temperature deviates.
▸ Door open alarm
Description
TECHNICAL SPECIFICATIONS:
| MODEL NO | AR-PF-100 | AR-PF-200 | AR-PF-300 | AR-PF-400 | AR-PF-500 | AR-PF-600 |
| Volume | 100
Ltrs |
200
Ltrs |
300
Ltrs |
400
Ltrs |
500
Ltrs |
600
Ltrs |
| Chamber Dimensions | 450×450 x500 | 500×450 x900 | 500×550 x1100 | 550×600 x1215 | 600×600 x1400 | 600×700 x1440 |
| External Dimensions | 610×700 x1000 | 660×700 x1400 | 660×800 x1600 | 710×850 x1725 | 760×850 x1910 | 760×920 x1950 |
| No. of Stainless Steel Trays (Basket) |
2 |
3 |
4 |
5 |
5 |
6 |
| Temperature | -40°C | -40°C | -40°C | -40°C | -40°C | -40°C |
| Power Supply | 230VAC 50Hz | 230VAC 50Hz | 230VAC 50Hz | 230VAC 50Hz | 230VAC 50Hz | 230VAC 50Hz |
GMP* Model: Inside stainless steel 304. 1.00mm thick and outside stainless steel 304, 1.00mm thick.
Standard Model: Inside stainless steel 304, 1.0mm thick and outside 1.00mm mild steel powder coated.
OPTIONAL ACCESSORIES:
▸ 8/4 Channel temperature data scanner with sensors, printer interface data management, drive data retrieval facility.
▸ 7 days digital chart recorder.
▸ Power failure alarm.
