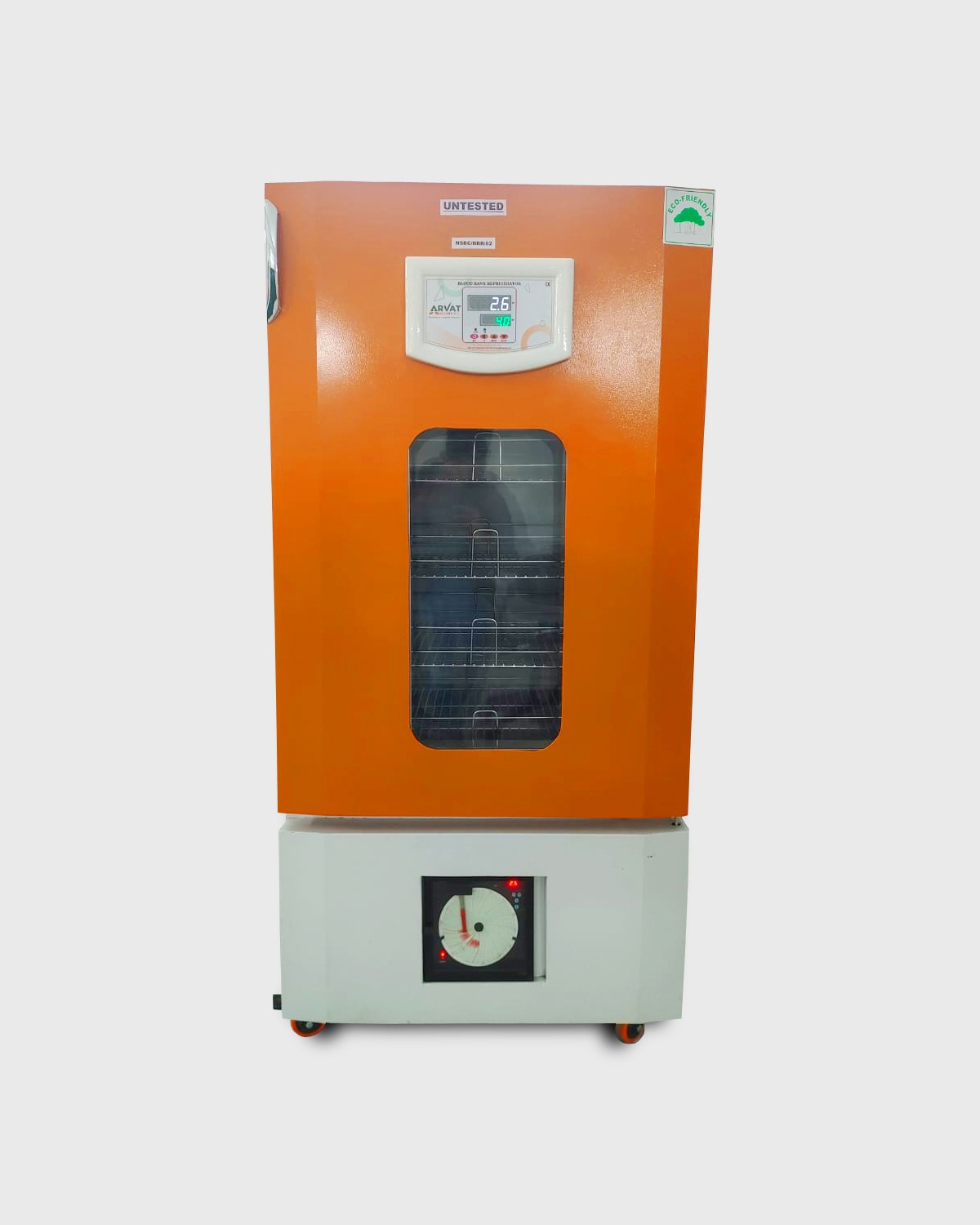

Blood Bank Refrigerator
Our range of Blood Bank refrigerators come with a freeze-free guarantee and a 24×7 digital temperature recorder. Its efficient design reduces thermal shock, while the built-in intelligent temperature control maintains the optimum temperature to store life-saving blood.
Blood Bank Refrigerator is specially designed incorporating aesthetic design and latest technologies for Blood Bank applications .These refrigerator are available in 10 basic models suite storage requirements. They are equipped with Hermitical type heavy duty compressors. Inner chamber having direct airflow system temperature uniformity to maintain a vital operational temperature of 4 degree C.
The Micro-controller based LCD graphic display ensures crystal clear accurate temperature values from long distance. The transparent inner Acrylic door provides clear viewing of material kept in the chamber.
Description
SALIENT FEATURES:
▸ Micro controller based graphic LCD display.
▸ CFC free refrigerant and high density PUF insulation.
▸ Audio-Visual alarm when the temperature deviates.
▸ Built-in 7 days digital chart recorder.
▸ Motors with Impeller for Temperature uniformity in chamber.
▸ CFL lamp for chamber inside visibility.
▸ Perforated Stainless Steel heavy duty baskets.
▸ Heavy Duty Castor wheels for easy mobility.
▸ Door open alarm.
TECHNICAL SPECIFICATIONS:
| MODEL NO. |
AR-BBR -100 |
AR-BBR -200 |
AR-BBR -300 |
AR-BBR -400 |
AR-BBR -500 |
AR-BBR -600 |
AR-BBR -700 |
AR-BBR -800 |
AR-BBR -900 |
AR-BBR -1000 |
|
Tempe-rature |
4°C |
4°C |
4°C |
4°C |
4°C |
4°C |
4°C |
4°C |
4°C |
4°C |
| Inner Size(mm) |
450 X 450 X 500 |
500 X 450 X 900 |
550 X 500 X 1100 |
600 X 560 X 1200 |
600 X 600 X 1400 |
650 X 640 X 1450 |
700 X 690 X 1450 |
750 X 740 X 1450 |
1040 X 600 X 1450 |
1050 X 660 X 1450 |
|
External Size(mm) |
570 X 650 X 920 |
620 X 690 X 1320 |
670 X 700 X 1550 |
720 X 780 X 1670 |
720 X 810 X 1870 |
770 X 850 X 1950 |
820 X 890 X 1950 |
890 X 1160 X 2070 |
1170 X 850 X 2070 |
1180 X 860 X 2070 |
| Accu-racy | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C | ± 0.5°C |
| Storage Volume | 100 Ltrs | 200Ltrs | 300 Ltrs | 400Ltrs | 500 Ltrs | 600Ltrs | 700Ltrs | 800Ltrs | 900Ltrs | 1000Ltrs |
| Storing Cap. of Blood bags Apx.(ml) |
65 X 350 ml
46 X 450 ml |
175 X 350 ml
141 X 450 ml |
206 X 350 ml
175 X 450 ml |
275 X 350 ml
265 X 450 ml |
333 X 350 ml
278 X 450 ml |
425 X 350 ml
392 X 450 ml |
496 X 350 ml
457 X 450 ml |
600 X 350 ml
550 X 450 ml |
676 X 350 ml
620 X 450 ml |
900 X 350 ml
826 X 450 ml |
| No. of Baskets | 3 | 4 | 5 | 5 | 6 | 6 | 7 | 8 | 8 | 8 |
| Power Supply |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
230 VAC 50Hz |
| Tray & Chamber MOC | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 | S S-304 |
| No. of Chamber Blowers | 1 Axial Fan | 1 Blower motor | 2 Blower motors | 2 Blower motors | 2 Blower motor | 2 Blower motors | 2 Blower motors | 2 Blower motor | 2 Blower motors | 2 Blower motors |
